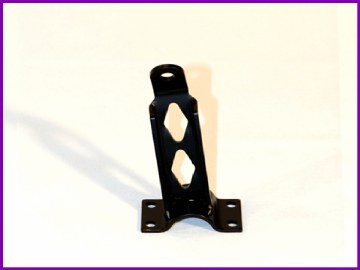

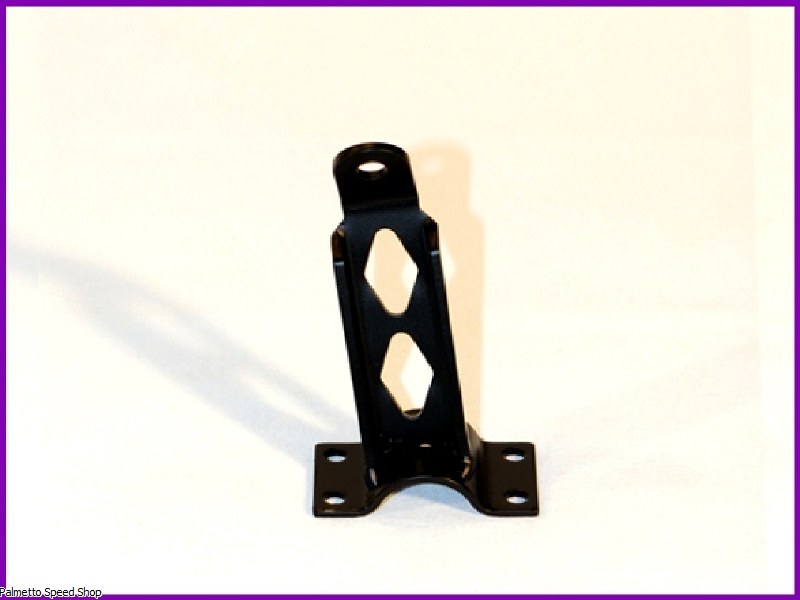

SEAT STRUT LEFT STANDARD

061191

SEAT STRUTS: mix and match:
Qty:	Percent Off:

-OEM STRUT FOR PRC KARTS
-WILL FIT OTHER CHASSIS
-MEASURES 4 3/8" " IN LENGTH

All of our return and order complication information can be found in our help center and if there is a situation that is not covered, please submit a ticket through the link below

Click Here For Help on Returns-Exchanges-Damaged-Missing Items

Click Here To Submit A Ticket

To see the membership pricing displayed simply create an account or log in and the discounted pricing and any associated quantity based discounts will be displayed. You can add the membership to the cart and all the pricing will be discounted through the entire store so you can purchase a little or as much as you want and proceed to checkout. Once the order is received you will get a email back from us explaining that your account is active and to log out and log back in and the pricing will be in affect for the next 12 months.

Click Here For More Details On How It Works

Click Here To Submit A Ticket If You Need Further Assistance

We ship exclusively through UPS and below is a transit map that will give you an ESTIMATED time in transit based on the color chart.

All Orders placed by 2pm M-F unless otherwise noted (holidays, weather etc.) will ship the same day and any orders after that can ship out until 4pm but we cannot make any guarantees

UPS:

For a more detailed delivery date CLICK HERE and in the ship from information use Conway - 29526

1-5lb - $15.00

5-10lb - $17.00

11-15lb - $19.00

16-20lb - $24.00

21-29lb - $30.00

Anything over 30lb or items that are considered oversized, the store will automatically remove the UPS option and the only thing displayed will be "Ground shipping will be added once order is received" This will give us the ability to calculate the shipping accurately as it may need to go in multiple boxes or the box is oversized. For a breakdown of how pricing is calculated CLICK HERE

custom image

Q&A

How to Choose The Right Size Seat Strut

We offer several length seat struts for both the Right and Left side that allows you to custom match a pair that will make mounting your seat easier and headache free.

All measurments are taken from the base of the strut as its welded to the top of the clamp not the bottom where it mounts to the chassis rail and everything is to the center of the mounting hole into the seat

Right Side:

Standard - Height 6 1/4" PN 06118 - Most Commonly used on all adult size seats and fits all chassis but does not work with a seat bar only mounted directly to the chassis

Tall - Height 7" PN 06120 - Can be used on Right and Left side, used on most youth seats with drivers ranging from 85lb and lower

Adjustable - Ranges from 6 1/4" - 8 3/4" PN 061224 JRS - A 2 piece design that allows the inside to be slid up or down and then drilled and pinned at the correct height. Can be used in any application Jr or Sr

Left Side:

Standard - Height - 4 3/8" PN 061191 - Standard Left side struts for Adult sized some larger Youth seats when the seat height desired is at least 8 1/2" or taller of the axle

Short - Height - 3 3/8" PN 061202 - A shorted designed strut that is the same as the standard and allows the seat to be lowered down further without getting into the rib of the seat. Works well on the pro series seats

Tall - Same as above that can used for either side PN 06120

Adjustable Standard - Height - 4 1/8" - 5 1/4" PN 061224 SLS - A 2 piece design that allows the inside to be slid up or down and then drilled and pinned at the correct height. Can be used in any application Jr or Sr

Adjustable JR. - Height 6 5/8" - 9 1/2" PN 061224 JLS - A 2 piece design that allows the inside to be slid up or down and then drilled and pinned at the correct height. Can be used in any application Jr or Sr

Accessories

The adjustable struts come with all the hardware needed, the rest do not, below are options to be added when buying your struts

Seat mounting bolt kit - PN 06117

Threaded seat strut clamps PN 06128

Rivet Seat Washer Kit - 061171

We exclusively offer Chavous seats as we feel this is the industry standard for performance and all the above mentioned parts will work regardless of the style seat that you purchase. Each seat has a size an approximate driver size listed so choosing the right seat is easier but if you need help, submit a ticket or send a message with more information and we will be glad to assist
